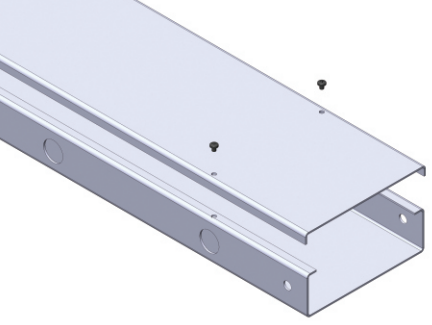

Surface Trunking

Features
  • Partition can be provided forwidth above 75mm width at min 50mm intervals
  • Cutouts on partition can be provided
  • Knockouts of 20mm dia can be provided on 50mm height raceways
  • Accessoriessimilarto underfloortrunking available
  • Available Materials &Finishes - Pre Galvanized ,Alum in um, SS304, SS316, Powder Coated
Surface Trunking
(Width) in mm Height 40mm, 50mm, 75mm & 100mm
Base/Cover Thickness (mm) > 1.2/1.2 1.2/1.6 1.6/1.6 1.6/2.0 2.0/2.0
50 ✓ ✓ ✓ ✓ ✓
100 ✓ ✓ ✓ ✓ ✓
150 x ✓ ✓ ✓ ✓
200 x ✓ ✓ ✓ ✓
250 x ✓ ✓ ✓ ✓
300 x ✓ ✓ ✓ ✓
Standard Sizes for twist lock Trunking
(Width) in mm Height 40mm, 50mm, 75mm & 100mm
Base/Cover >> 1.2/1.2 1.2/1.6 1.6/1.6 1.6/2.0 2.0/2.0
50 ✓ ✓ ✓ ✓ ✓
100 ✓ ✓ ✓ ✓ ✓
150 x ✓ ✓ ✓ ✓
