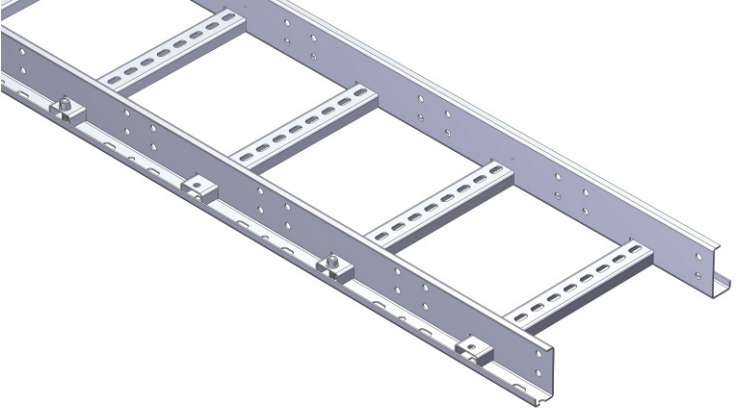

- Interchangeability of rungs means faster deliveries and flexible/faster assembly at site.
- Ease of storage and accounting at site. Compact packing ensures fresh finish at assernblytime.
- Excess quantities from site and be easily diverted or stored for later use.
- Intermediate couplers holes mean no drilling on cuts, holes pattern display material thickness.
- Transport &handling costs are a fraction of those for rigid welded ladders. Zero damage during transit.
- Best suited for Pre galvanized, aluminum & stainless steel materials. Best suited for powder coated finish.
- Innovative clamps for earth flats, cables, covers and hold down clamp arrangement options available.
- Used all over India and abroad at prestigious project locations over last 25 years. Stock of popular sizes usually available.
- Minimized assembly time as only 2nd & 4th Rung from each end needs to be bolted
- Available Finishes: Hot Dip Galvanized (HDG), Pre Galvanized , Aluminum, SS304, 55316, Powder Coated (PC) , HDG + PC, Marine Grade Aluminum (special applications)
- Certified for electrical continuity and impact test in accordance with IEC61537
| Width (W)(mm) |
Height (H)
Rung (PO)
30x15mm
|
Height 50mm
Rung (R)
30x15mm
|
Height 75mm
Rung (R)
40x20mm
|
Height 100mm
Rung (R)
30x15mm
|
Height 100mm
Rung (R)
40x20mm
|
|
1.6 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
3.0 |
| 100 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
| 150 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
x |
| 200 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
| 300 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 450 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 600 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 750 |
x |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 900 |
x |
x |
x |
|
x |
✓ |
✓ |
x |
|
|
✓ |
✓ |
| 1000 |
|
|
|
|
|
|
|
|
|
|
|
|
| 1200 |
x |
x |
x |
x |
x |
x |
✓ |
x |
x |
✓ |
✓ |
✓ |
| 1500 |
x |
x |
x |
x |
x |
x |
x |
x |
x |
x |
✓ |
✓ |
90 Degree Horizontal Bend
90 Degree Vertical External/ Internal
Horizontal Hinged Coupler
