Junction Boxes

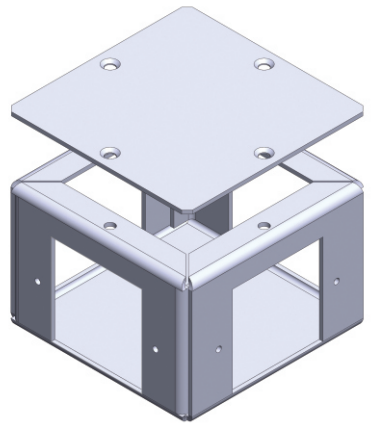

Ceiling Junction Box
Ceiling Junction Box
Trunking width Outside width of box Box height for 40mm height trunking Box height for 50mm height trunking Box height for 75mm height trunking Box height for 100mm height trunking
50 125x125mm 58mm 68mm - -
75 150x150mm 58mm 68mm - -
100 150x150mm 58mm 68mm 95mm 118mm
150 200x200mm 58mm 68mm 95mm 118mm
200 200x200mm 58mm 68mm 95mm 118mm
300 200x200mm 58mm 68mm 95mm 118mm
400 450x450mm 58mm 68mm 95mm 118mm
450 500x500mm 58mm 68mm 95mm 118mm
600 650x650mm 58mm 68mm 95mm 118mm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated

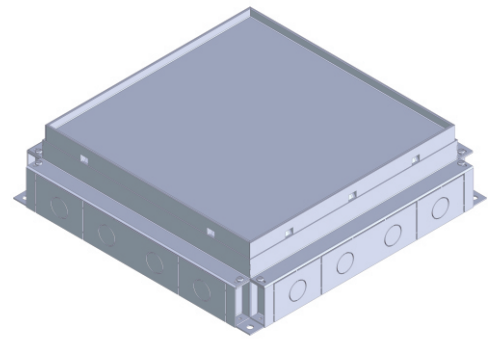

Flush Floor Junction Box
Flush Floor Junction Box
Trunking width Box for 40mm height trunking Box for 50mm height trunking
100 172x172x58mm 172x172x68mm
150 222x222x58mm 222x222x68mm
200 272x272x58mm 272x272x68mm
250 322x322x58mm 322x322x68mm
300 372x372x58mm 372x372x68mmm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated

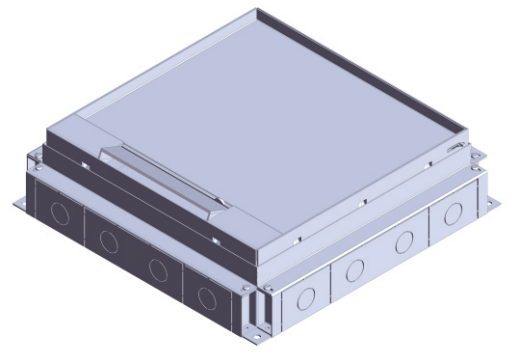

Height Adjustable Junction Box
Height Adjustable Junction Box
Trunking width Box for 40mm height trunking Box for 50mm height trunking
150/200 270x270x60-85mm 270x270x70-95mm
250/300 370x370x60-85mm 370x370x70-95mm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated

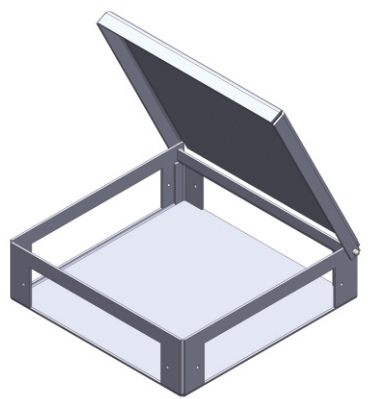

Service Outlet Junction Box
Service Outlet Junction Box
Trunking width Box for 40mm height trunking Box for 50mm height trunking
150 200x200x65mm 200x200x75mm
200 250x250x65mm 250x250x75mm
250 300x300x65mm 300x300x75mm
300 350x350x65mm 350x350x75mm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated

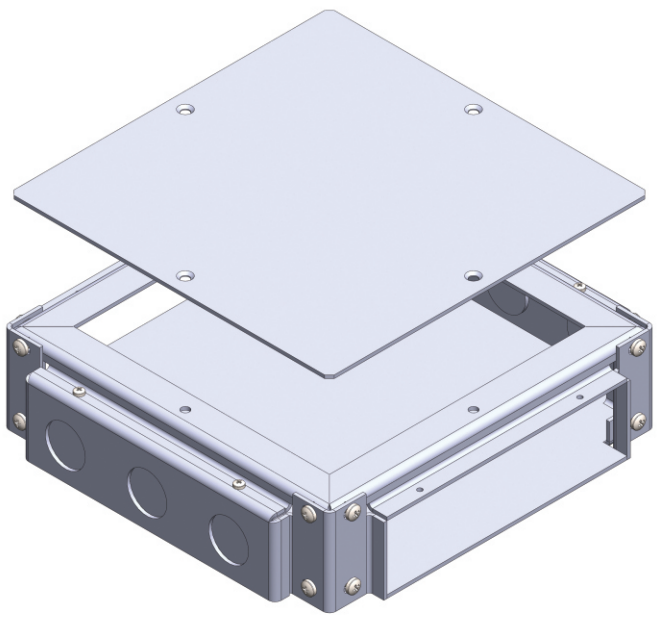

Under Floor Junction Box (Fixed Height)
  • OFFERED FOR
  • For raceways to Profab dimension of ducts, close fit
  • For aluminum extruded raceways, close fit and
  • For conduit pipes
  • CHOICE OF
  • Cover materials (typical stainless steel) /coverthickness ( higher/lower)
  • End caps with knock out facility
  • Height adjustment to cope with screed thickness. Same height as duct for flush floor
  • Alternative materials of construction aluminum ,stainless steel
  • Alternative finishes powder coated ,yellow zinc passivated
  • Separators (flyover arrangement) for wire bunch separation
Underfloor Junction Box (UBJB)
Trunking width Box for 40mm height trunking Box for 50mm height trunking
50 125x125x58mm 125x125x68mm
75 150x150x58mm 150x150x68mm
100 172x172x58mm 172x172x68mm
150 222x222x58mm 222x222x68mm
200 272x272x58mm 272x272x68mm
300 372x372x58mm 372x372x68mm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated

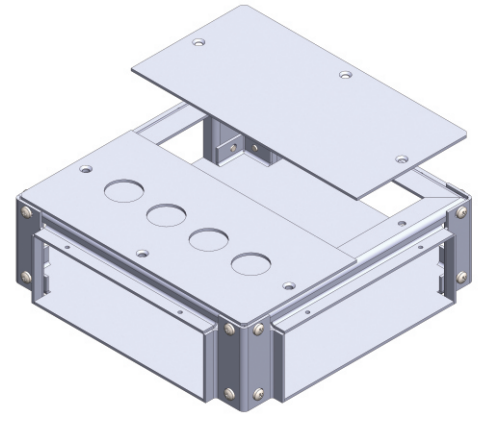

Junction Box With Knock Outs On Cover (Fixed Height)

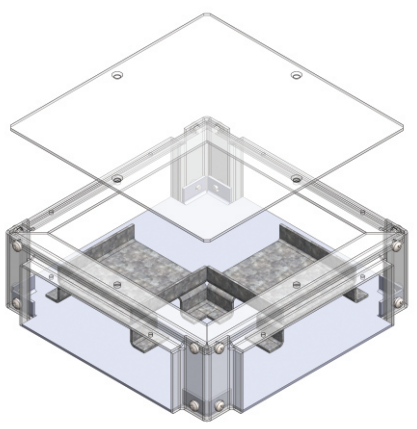

Junction Box With Flyover (Fixed Height)

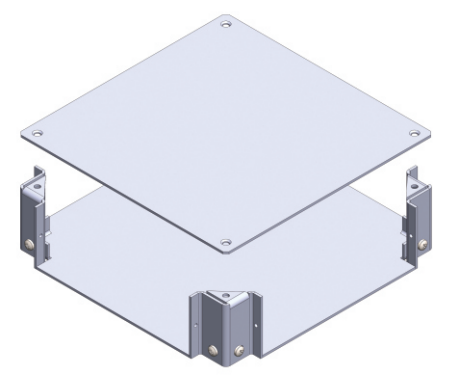

Under Floor Single Base Junction Box (Fixed Height)
Under Floor Single Base Junction Box (SBJB)
Trunking width Outside width of box Box height for 40mm height trunking Box height for 50mm height trunking
50 125x125mm 58mm 68mm
75 150x150mm 58mm 68mm
100 150x150mm 58mm 68mm
150 200x200mm 58mm 68mm
200 250x250mm 58mm 68mm
250 300x300mm 58mm 68mm
300 350x350mm 58mm 68mm
400 450x450mm 58mm 68mm
450 500x500mm 58mm 68mm
Available Finishes : Pre Galvanized, SS304, SS316, Powder Coated
